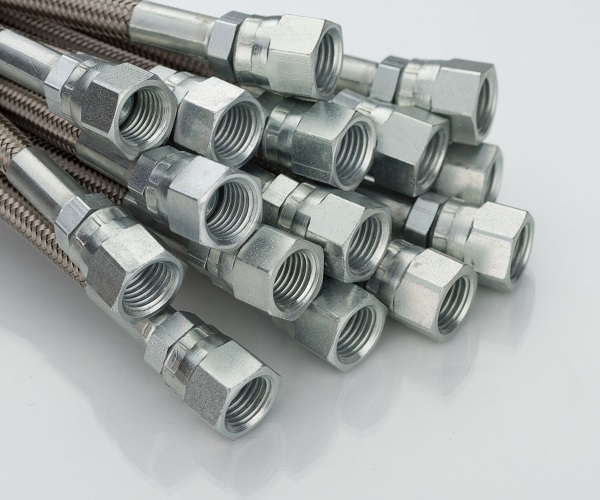

Braided Hydraulic Hoses

HOSE SIZE		SAE 100 R-1 AT (1SN)			SAE 100 R-2 AT (2SN)			MH-SUPPER(2SN)			MH-SUPPER(2SN)			SAE 100R-5R
Inch	MM	MAX. W.P. BAR	MIN. B.P. BAR	MIN. BEND MM	MAX. W.P. BAR	MIN. B.P. BAR	MIN. BEND MM	MAX. W.P. BAR	MIN. B.P. BAR	MIN. BEND MM	MAX. W.P. BAR	MIN. B.P. BAR	MIN. BEND MM	MAX. W.P. BAR	MIN. B.P. BAR	MIN. BEND MM
1/4	6.4	225	900	100	400	1600	100				86	345	76	207	828	86
5/16	7.9	215	850	105	350	1400	115				83	331	102	155	621	102
3/8	9.5	180	720	130	330	1320	130	350	1400	130	78	310	102
13/32	10.3													138	552	117
1/2	12.7	160	640	180	276	1103	180	345	1380	150	69	276	127	121	483	140
5/8	15.9	130	520	200	250	1000	200	300	1200	190	60	241	140	103	414	165
3/4	19.0	105	420	240	215	860	240	265	1060	230	52	207	152
7/8	22.2													55	221	187
1	25.4	88	352	300	165	660	300	210	840	300	39	155	203
1 1/8	28.7													43	172	229
1 1/4	31.8	63	252	420	125	500	420	155	620	380	26	103	254
1 3/8	34.9													34	138	267
1 1/2	38.1	50	200	500	90	360	500				17	69	306
1 13/16	46.0													24	97	337
2	50.8	40	160	630	80	320	630				15	60	410
2 3/8	60.3*	25	100	762	70	280	762							24	97	610
2 1/2	63.5*	25	100	762	69	276	762
3	76.2*	20	80	915	45	179	915
3 1/2	90.0*	15	60	1067	28	110	1067
4	101.6*	10	40	1105	25	101	1105
