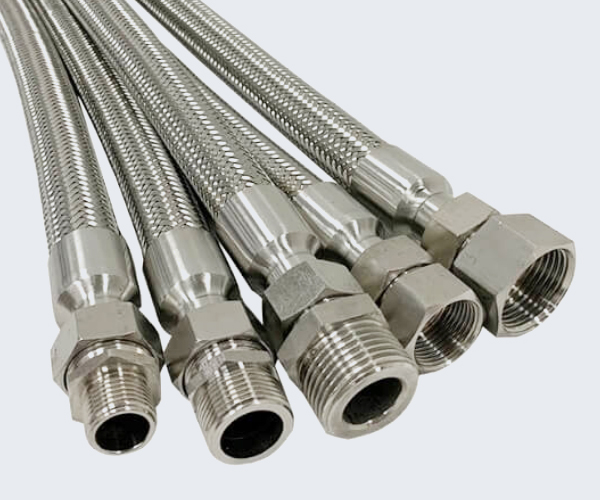

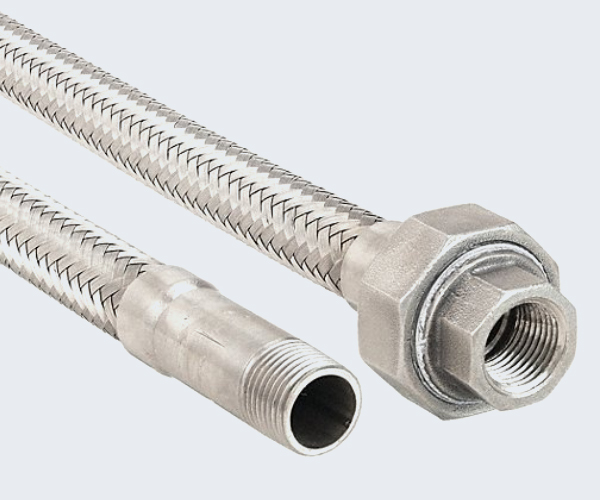

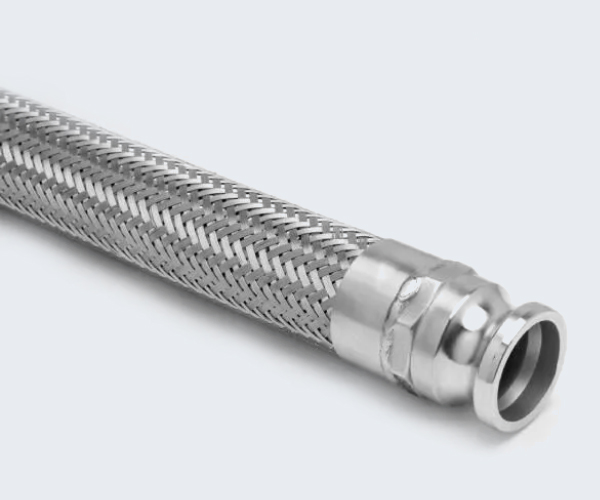

High Pressure Flexible Metal hoses
Our product group excels in meeting the demands of customers requiring high-pressure solutions through the use of specialized braiding designs and thicker walls compared to standard industrial hoses. Although our standard production range covers DN6 to DN50, we also offer custom production upto DN300 to, we also offer custom production up to DN50 to accommodate specific customer needs.
ADVANTAGES:
- Capable of withstanding high pressures without requiring braiding
- Suitable for use in moving components
APPLICATIONS:
- Hydraulic systems
- High-pressure pumps
- Gas distribution lines
- Machinery industry
- Chemical industry
DESIGN SPECIFICATIONS:
- Without Braid
- With Braid
- Hose Material: 304L, 316L, 321
- Braid Material: 304L, 316L
- Working Pressure: 0-10kg/cm²
- Sizes: upto DN300

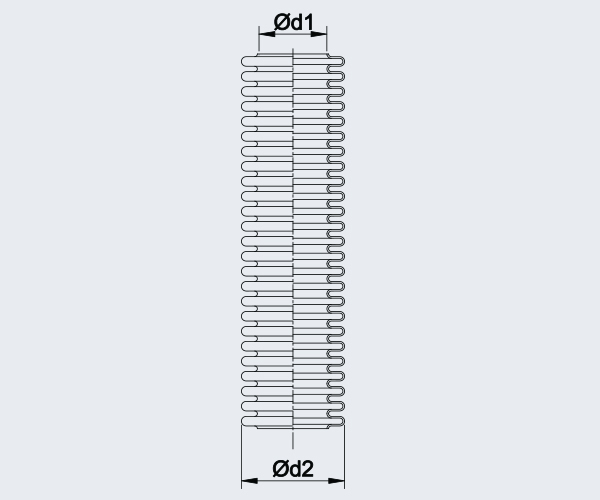

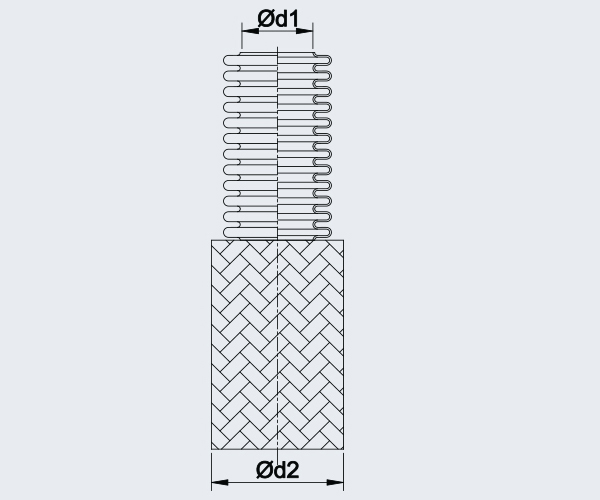

| DN | d1 | d2 | Tolerance | “Bend Radius With Wire Braiding TYPE 1 AND 2 (BRAIDED)” | “Bend Radius Without Wire Braiding TYPE 3 (UNBRAIDED)” | Working Pressure | |
| mm | inch | mm | mm | mm | mm | mm | mm |
| 6 | 1/4″ | 6,3 | 9,6 | ± 0,2 | 25 | 12 | 10 |
| 8 | 5/16″ | 8.2 | 12.2 | ± 0,2 | 32 | 16 | 10 |
| 10 | 3/8″ | 10.3 | 14.2 | ± 0,2 | 38 | 20 | 8 |
| 12 | 1/2” | 12.1 | 16.7 | ± 0,2 | 45 | 25 | 8 |
| 16 | 5/8” | 16.2 | 21.6 | ± 0,2 | 58 | 25 | 8 |
| 20 | 3/4″ | 20.3 | 26.8 | ± 0,2 | 70 | 30 | 6 |
| 25 | 1″ | 25.3 | 32.3 | ± 0,3 | 85 | 45 | 6 |
| 32 | 11/4″ | 34.3 | 41.1 | ± 0,3 | 105 | 60 | 2.5 |
| 40 | 11/2″ | 40.2 | 49.8 | ± 0,3 | 130 | 80 | 2.5 |
| 50 | 2″ | 50.3 | 60.4 | ± 0,4 | 160 | 100 | 1.6 |
