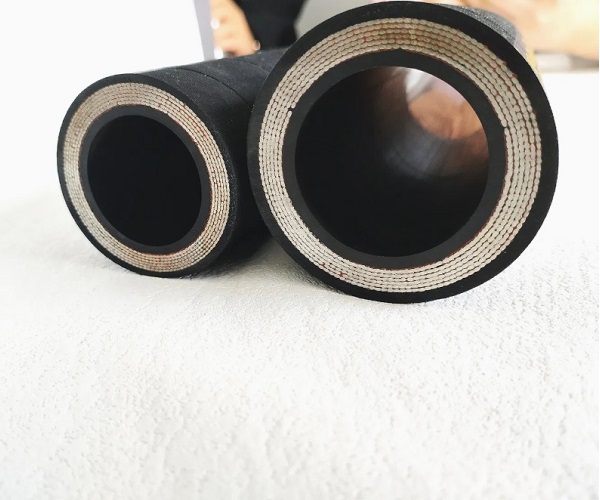

Multispiral Hoses

Hose Construction	:	Inner Tube Synthetic Oil Resistant Rubber
Reinforcement	:	4 Or 6 High Tensile Steel Wire Spirals
Cover	:	Synthetic Rubber – Abrasion, Ozone And Weather Resistant
Temp. Range	:	-40° C To +100° C Continuous +121° C Intermittent
Application	:	Extremely High Pressure Hydraulics
End Connection	:	Can Be Manufactured As Per Customer’s Specifications

HOSE SIZE		4SP			4SH			SAE 100R-9AT			SAE 100R-12			SAE 100R-13
Inch	MM	MAX. W.P. BAR	MIN. B.P. BAR	MIN. BEND MM	MAX. W.P. BAR	MIN. B.P. BAR	MIN. BEND MM	MAX. W.P. BAR	MIN. B.P. BAR	MIN. BEND MM	MAX. W.P. BAR	MIN. B.P. BAR	MIN. BEND MM	MAX. W.P. BAR	MIN. B.P. BAR	MIN. BEND MM
3/8	9.5	445	1780	180				310	1240	127	276	1100	127	690	2760	152
1/2	12.7	415	1660	230				276	1100	178	276	1100	178	517	2070	200
5/8	15.9	350	1400	250							276	1100	203
3/4	19.0	350	1400	300	420	1680	280	207	825	241	276	1100	241	345	1380	241
1	25.4	280	1120	340	380		340	207	825	305	276	1100	305	345	1380	305
1 1/4	31.8	210	840	460	325	1300	460	172	680	419	207	825	419	345	1380	419
1 1/2	38.1	185	740	560	290		560	138	550	508	172	685	508	345	1380	508
2	50.8	165	660	660	250	1000	700	138	550	660	172	685	635	345	1380	635
